PCB ASSEMBLY
Services for assembling PCBs are long gone.In the eyes of many, we are adding a new dimension to an extremely monotonous project.On our service page, which provides the best PCB assembly services solutions to all of your concerns, these have been detailed and explained.EITPL can be a source of energy for your new ideas.SMT assembly, turnkey PCB assembly, and main PCB assembly services are our specialties.We are a well-known and sophisticated manufacturer of PCB Assemblies, but we also care about our customers and offer a wide range of PCB Assembly services to meet their requirements.
PCB ASSEMBLY MANUFACTURER
One of the most versatile manufacturers in the country, EITPL is dependable, efficient, and speedy. Our contact network is extensive and open to all of your concerns, complaints, recommendations, and—most importantly—feedback. Our number one aim is to satisfy our customers. We are dedicated to assisting our clients in achieving their goals by providing them with the tools and support they need.
Here is a brief sneak preview of our SMT and SMD assembly services, which are the most popular. The main reason why people utilise our services frequently is that they are the finest at meeting their needs. Second, we excel in creating products that adhere to your blueprint.
PCBA Next-Generation Technology Use: A Company Secret
Your commitments are put together and given life by us. With the most advanced assembly technology and our experts’ vigilant and keen eyes, there is no room for error. We create and test it to make sure it is excellent in functionality and dependability so that our clients won’t have any complaints.
QUOTE
PCB ASSEMBLY
Kosh provides PCB all kinds of PCB assembly services, including: Thru-hole, Surface Mount (SMT), SMT & Thru-hole Mixed.
Using traditional methods and the latest equipment and processes, our experienced staff can
supply prototype through to large volume assembly. We can place many surface mount packages
including BGA, Chip Scale Packages and passives down to 0201. A high level of placement accuracy, solder
joint integrity and quality is consistently achieved.
PCB Assembly Capabilities -
Assembly Types
⦁ Surface Mount (SMT)
⦁ Thru-hole
⦁ Mixed Technology (SMT/Thru-hole)
⦁ Single or double-sided placement
⦁ Rigid, Flexible PCB and Rigid flex PCB Assembly
⦁ High pin count press fit capable
Parts Procurement
⦁ Turnkey PCB Components sourcing
⦁ Kitted/Consigned
⦁ Partial Turnkey
PCB Board Dimensions Available
⦁ Smallest size: 0.2″ x 0.2″
⦁ Largest size: 20” x 28″
Volume
⦁ No minimum order quantity
⦁ Engineering prototypes
⦁ Low cost first article
⦁ Mass production
Inspections/Testing
⦁ AOI (Automated Optical Inspection
⦁ X-ray for BGA
⦁ ICT (In-circuit Test)
⦁ FCT (Functional Test)
Component Types
⦁ Passive Components as small as 0201
⦁ Ball Grid Arrays (BGA) as small as .35mm pitch
⦁ BGA, UBGA, QFN, DFN, SOP, PLCC, POP, CGA, CSP and Leadless chips
⦁ All kinds of passive and active components
Other Capabilities
⦁ Repair/Rework services
⦁ Mechanical Assembly
⦁ Electromechanical Assembly
⦁ Box Build Assembly
⦁ IC Programming, System Integration
⦁ Conformal coating
⦁ Cable and Wire Harness Assembly
Our inspection and tests
⦁ 100% PCB open/short testing for PCB
⦁ 100% AOI (Automated Optical Inspection)
⦁ 100% visual defects inspection
⦁ X-ray for BGA
⦁ ICT (In-circuit Test)
⦁ FCT (Functional Test)

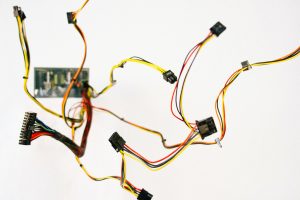

Cable & Wire Harness Assembly
Cable are wire are widely used in electronic devices to connect several electronic parts, such as control part to I/O parts. Cable and wire harness assembly combines a set of wires, cables and connectors, to transmit power or signals in industrial applications. A cable assembly usually features two ends, while the wire assembly may feature multiple ends, which run in multiple directions.
Our cable and wire harness assemblies are widely used in various industrial applications such as industrial, automotive, communications, medical, etc.
Types of cables and harnesses:
⦁ Ribbon cables
⦁ Coaxial cables
⦁ Fiber optic cable assemblies
⦁ Synthetic and stainless-steel cables
⦁ Electromechanical assemblies
⦁ FEP, ETFE, and PFA – wires and cables
⦁ Halogen-free cables
⦁ Custom cable harnesses
⦁ Passive component-to-wire
A COMPANY SECRET
Next-Gen Technology Use in PCBA
Your commitments are put together and given life by us. With the most advanced assembly technology and our experts’ vigilant and keen eyes, there is no room for error. We create and test it to make sure it is excellent in functionality and dependability so that our clients won’t have any complaints.
The Finest Products to Meet All Your Needs
This is not the conclusion of the adventure. We develop PCBs that are unmatched in technology and dependability using the greatest tools and devices on the market. Additionally, we ensure that every product is double-checked by our engineers’ highly trained eyes to ensure it meets and meets the expectations of the customer.
Optimized for High-Quality and Quick Deliveries
Adaptive Approach Turnkey, Consigned, and Partially-Consigned Sourcing
Standardized Systems BGA, QFN, QFP, and 0402 01005 Components-Capable Assembly Plant
Technology-Enabled Precision 2.5 D AOI Verification, X-Ray Inspection, and Automatic Wave Soldering Through Hole Components
Quick Delivery starting from 3 Working Days
OUR RANGE OF OFFERING
Types of PCB Assembly | Surface Mount (SMT), Through-Hole (THT), Mixed Technology (SMT / Through-Hole) Single or double-sided placement |
Types of Solder | Leaded Lead-free (RoHS Compliant) |
Minimum Order | No minimum quantity |
Component Types | Passive Components, as small as 01005, 0201, 0402 Fine Pitch Parts (QFN, QFP) Small Chip Packages, 01005 Max. Size: 56 X 56 X 15 mm |
Component Package | Reels Cut Tape (must be continuous and 12 inches or longer) Tube & Tray Max Customer Panel Size – 270 mm x 370 mm |
Board Dimension | Min Board Size: 90mm x 50mm (Boards smaller than this will be panelized) Min. Board Thickness: 0.5 mm Max. Board Thickness: 3.20 mm |
Board Shape | Rectangular, Circular and other Custom Shapes. (For shapes other than rectangle, we will panelize the boards in an array, and add panel border on at least two of the longer sides.) |
Board Type | We work only with Rigid Boards. |
Inspection + AOI | Visual X-ray |
Supported File Formats | BOM: .xls, .csv, .xlsx Gerber (RS-274X) Centroid (XY, Pick-& -Place) |
